Product

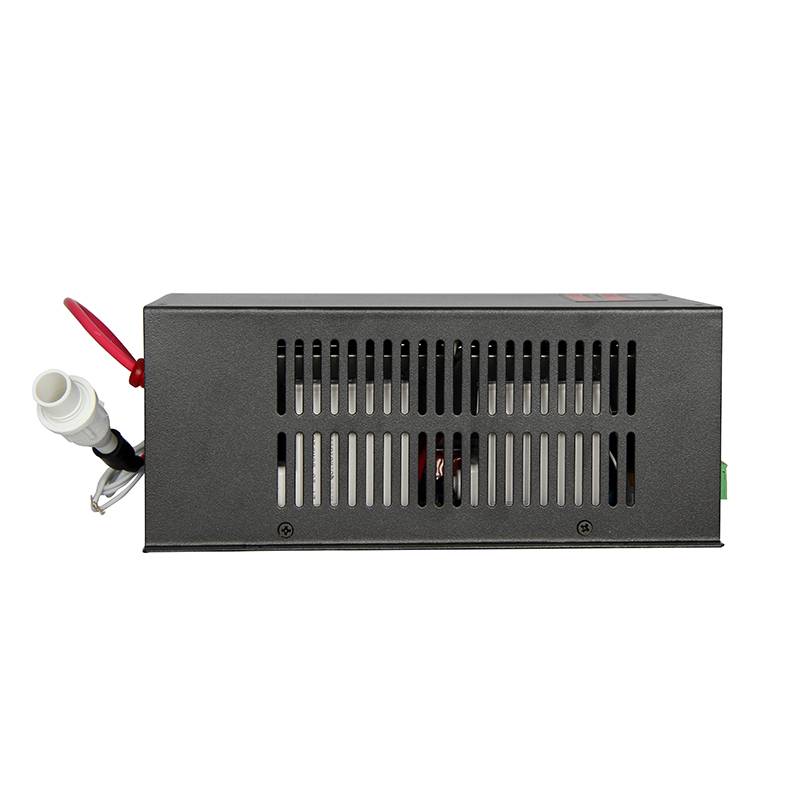

SPT-80W Co2 Laser Power Supply

Minimum Order : 1 , Pieces

80W Laser Power Supply

Model

SPT-80W

Input voltage

220/110V

Response speed

≤1mS

Max output current

30mA

Starter voltage

35KV

Nominal power

500W

Output voltage

45KV

Working voltage

18KV

Output current

7--30mA

Using condition

Temperature

-10~40

Humidity

≤85%

Power supply aging test: each laser power supply will be tested by full load condition under high temperature 60 degrees for 12 hours for aging test. Every 7 seconds to open, stop the power test for 500 times.

SPT-60W

* Adoption of zero-current soft-switching half-bridge circuit makes power supply have high working efficiency, fast response features, and is easy to work with laser tube

* Port controls simple, adapt to the high and low level two signals, using TTL can control the laser and, at the same time, stop with abnormal protection switch, testing outside water supply, ventilation, etc.

* Laser power regulation can input 0 to 5v analog signals, also can input PWM signal to control the output of the laser power.

* Power supply with open circuit protection function: in the case of good grounding protection, power supply can work for short time in open state, so that we can avoid the laser supply damage caused by laser tube burst.


SPT laser is established in Dongguan, Guangdong province, China. Its main factory is located in Jiangsu, where is close to Shanghai. All workshops are dust-free, which contain over 100 workers. Main office is located in Dongguan city, which is in charge of the management of whole company as well as sales and shipping. SPT Laser is professional manufacturer of glass co2 laser tube, laser lens and laser mirror, also supplies co2 laser power supply, RF laser tube maintenance service, etc to help customers save their cost with higher efficiency. SPT laser is dedicated to supply the best quality product and perfect laser solutions with same cost for customers.

Recently, we’ve launched our FEEL TEK series product--- dynamic laser marking system. It is designed to get much larger scale working area at lower cost compare to other normal laser marking machine, 3D laser marking system is available as well. We are aiming to help our customers get perfect working performance with lower cost and higher machine stability. All Dynamic laser solutions are customized based on your actual needs and budget with high quality imported optical parts and electronics.



Our products are mainly:

1, Main components for co2 laser cutting and engraving machines;

2. Dynamic co2 and fiber laser marking solutions and 3D laser marking system;

3. Agent brand new RF laser tube and maintenance service for used RF laser tube.
